The design Diavel Carbon, sets new standards in beauty, innovation and sophistication, while outstanding agility and handling are encased within a muscular body which moves with 162 hp. Its astonishing power can be managed in three different Riding Modes and with the assurance of the Ducati Safety Pack (ABS + Ducati Traction Control). Ducati has created something truly magic.
It will be called "DIAVEL" and will arrive at the new Ducati EICMA dream
Preceded by rumors, photos stolen and a lot of waiting, we received word is final. EICMA, the International Motorcycle Exhibition in Milano at Rho-November 2 to 7, will mark the first official appearance in public for the new Ducati.
Livery and specifications are defined and Ducati is ready to make his dream a reality. While waiting for the official presentation of Ducati also comes the anticipation of the name of this great news that, inspired by an expression in the dialect of Bologna, will be called "DIAVEL", or "devil."
A name that has its own particular history that stems from an incident that occurred during the development of the bike.
In fact, once set up the first prototype, with all the technical staff around the new creature "made in Borgo Panigale," a sentence in the dialect of Bologna said the original lines of the bike and winning, "ignurant comm 'to diavel!" Which, bringing the statement in Italian, it would sound "is as bad as the devil."
From that moment, "DIAVEL" became the name of inside the bike, to replace the internal code of the project. The decision to keep it for the production was, as you can imagine, a logical consequence.
Genesis similar to this, even if we are talking about almost 20 years ago, characterized another icon Ducati, the Monster, whose name was inspired by the now famous statement, also in the dialect of Bologna, "is just the'n monster! or is just a monster. "
As for Monster, the name DIAVEL then becomes the expression of that unique, passionate, further characterized by high technology and a unique design distinguishes every Ducati motorcycle produced.
At the same time it is also easy to see what this new bike and, while bound to tradition Ducati, destined to mark an important new chapter in respect of the aesthetic and performance.
The new Ducati Diavel Carbon be extremely accurate in every detail, carved in every muscle, comfortable and innovative. As in any real Ducati, the performance will play a very important role. Torque, power and dynamic behavior will be a new benchmark, thanks to the Testastretta engine 11 � the same as the Multistrada 1200 - and weighs only 207 kg dry, which promises superbike acceleration and speed and agility to change direction .
A relaxed riding position, the suspension comfort and safety are guaranteed by the ABS, traction control and standard riding mode, will satisfy even those riders who love to drive in peace, enjoying the street, landscape and all the characteristics of This new dream Ducati.
2011 Ducati Diavel Carbon Features and Benefits
Concept
The Diavel project was born when Ducati designers applied their wish-list of bike �basic instincts� to a blank canvas. With a �what if?� approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle. �The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,� explains the team at Ducati Design responsible for the project. �With the front wheel kept close to the Diavel�s body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched.�
Design
The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad �shoulders,� which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape. A massive 240 section rear tyre was a perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. The sheer width of rubber communicates so much power and style that the R&D team vowed to find a way to make it handle - even if they knew the image would send a seismic shock through the industry. The Diavel is a true Ducati, born from a passion for motorcycling and designed to deliver authentic Ducati performance in every respect.
Carbon
The Diavel Carbon embodies the true nature of the Diavel concept, where performance combines with style to celebrate Italian engineering at its best. Lightweight composites and milled aluminium components meld the two worlds of sport and style with features that are both visually beautiful and functionally high-performance.
Riding Mode
The Diavel incorporates the very latest in innovative Ducati technologies, including the recently introduced electronic Riding Modes. Selectable from the left-hand switchgear - even while riding - the choice of three pre-set modes are programmed to instantly change the character of the Diavel. The three modes are enabled by combining class-leading technologies such as Ride-by-Wire (RbW) and Ducati Traction Control (DTC). As riding on city streets can require more attention to the surroundings than to throttle inputs, the Urban Riding Mode instantly changes the Diavel to provide a manageable and confident ride. Power output is reduced to 100hp and DTC is further enhanced to level 5 to provide a higher system intervention during the most chaotic of stop-start traffic. The Touring Riding Mode is programmed to produce 162hp, however, with a smoother, more user-friendly power delivery. Rear end traction is enhanced by increasing DTC system intervention to level 4, specifically intended for an enjoyable and relaxing ride ideal for long distance and ensuring maximum comfort for both the rider and passenger. The Sport Riding Mode provides the Diavel rider with an adrenalin-fuelled 162hp ride and enables the rider to have full-on throttle response for maximum acceleration. Ensuring the full Testastretta 11� experience, the sport mode also lowers the DTC system intervention to level 3 for riders who prefer their performance a little closer to the traction limit.
Engine
Testastretta 11�
The Diavels heart is the Ducati Testastretta 11� - developed directly from the incredibly powerful, world-beating race engines of Ducati Corse. Ducati�s Testastretta 11� harnesses the immense power of the Superbike engine and makes it smooth and adaptable, a massive step forward in balancing high-performance with an enjoyable ride. For an engine with brute power on tap when needed and smooth, user-friendliness available for an effortless and comfortable ride, Ducati revised the configuration of the cam timing with particular focus on the valve overlap angle. The overlap angle is defined as the interval of crankshaft rotation, measured in degrees, during which both the intake and exhaust valves are open at the same time. This overlap occurs between the end of the exhaust stroke and the start of the intake stroke. High performance engines, which are subject to compromising smoothness for extreme power delivery, use high values of this parameter in order to benefit from the pressure waves to improve engine performance by maximising volumetric efficiency. On the Testastretta 11� engine, this angle has been reduced from 41�, used in the Testastretta Evoluzione engine which powers the 1198, to 11�. As a result, the fresh inlet charge flow is less compromised by the exiting exhaust gases, resulting in a much smoother combustion in addition to improved fuel economy and lower exhaust emissions.
Ride-by-Wire
The Ride-by-Wire (RbW) system is an electronic interface between the Diavel�s twistgrip and engine, which configures an ideal power response depending on the riding mode selected. The twistgrip no longer has a throttle cable connected directly to the throttle body butterflies, but instead delivers a signal to a control unit, which in turn operates the butterfly opening electronically. The RbW system uses three different mappings to regulate the power delivery: 162hp with a sports-type delivery 162hp with a progressive delivery suitable for touring 100hp with progressive delivery for city use
15,000 miles between major services
Constant investment in quality by design, advanced materials and engineering techniques have enabled the distance between major service intervals (valve clearance check) to be increased to a highly competitive 15,000 miles. This has been achieved with the introduction of new valve seat materials, improved combustion efficiency and temperature management designed into the Testastretta 11� engine.
Twin lateral radiators
The technical solution employed for keeping the frontal lines of the Diavel clean was to place two highly efficient lateral radiators on both sides of the bike. These well-ducted units, located beneath the fuel tank, use aerodynamics to help draw air flow through the radiators and are assisted by high-flow electric fans when required. The design combines form and function to enhance the muscular shape of the bike.
Exhaust system
The massive 58mm (2.28in) section exhaust headers lead the 2-1-2 system through power-enhancing equal lengths that enable the Diavel�s efficient power delivery. The engine management system dedicates a lambda probe to each header, providing precise fueling via a large airbox, while the stylish cannon-style, vertically stacked silencers carry catalytic converters to provide Euro 3 conformity and electronically controlled mid-section valve optimises exhaust pressures throughout the rev-range.
Slipper clutch
The transmission features an oil bath clutch with �slipper� function and super-light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates. This results in a much lighter clutch lever at the handlebar, ideal in stop-start traffic or during long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like �slipper� action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions.
Power and Torque
With its 162hp and colossal 94lb-ft (127.5Nm) of torque, the Diavel Testastretta 11� engine is all about authentic Ducati Desmodromic performance. The revised intake and exhaust ports combined with radical adjustment of the cam timing have enabled Ducati to achieve a fantastic torque curve at low rpm, which remains strong through a wider rev-range. The increase in bottom-end torque is managed by Ducati�s Ride-by-Wire (RbW) system to considerably enhance the Diavel�s effortless ridability, while ensuring plenty of power remains on tap for high-rpm riding.
Chassis
Marzocchi forks with fork sliders in super low-friction
The Diavel uses 50mm Marzocchi front forks with fork sliders black-finished in super low-friction diamond-like carbon (DLC). These forks are fully adjustable for spring pre-load, compression and rebound damping. The forks are gripped by a slash-cut triple-clamp - cast aluminium for the lower and forged for the upper - with a rubber-mounted riser to tapered alloy bars. With a rake of 28�, trail of 130mm (5.12in) and an offset of 24mm (0.945in), the set-up provides a sure-footed and agile front-end for incredible handling and 70� of total steering lock for maximum manoeuvrability.
Marchesini nine-spoke wheels Marchesini nine-spoke wheels
The Diavel Carbon has custom shop-finished, lightweight, forged, turned and milled rims by Marchesini that not only score an impressive total weight saving of 5.5lb (2.5kg), but also look spectacular. These highly intricate nine-spoke wheels highlight the delicate machining in natural aluminium set against a black finish.
Fuel tank and air intakes
The Diavel�s 17l (4.5 gal US) fuel tank represents an integral part of the bike�s overall styling. Its wide, long lines sweep down from the headlamp assembly into the seat and rear sub-frame to create a seamless profile. While the focal point of the tank is the high resolution display panel, the steel tank skin and well-sculpted knee panels add a solid feel to the Diavel and a high tech composite look to the Diavel Carbon. On each side of the front of the tank are massive air intakes formed in aluminium to feed the engine�s large airbox.
Single-sided swingarm
The long, die-cast aluminium, single-sided swingarm provides great �feel� at the rear-end with a wheelbase of 1590mm (62.6in) and a stance that provides lean angles of up to 41�.
Braking system
The Diavel front brakes use Brembo�s incredibly powerful Monobloc callipers, which deliver outstanding performance actuated by new integral alloy master cylinders with unique shape reservoirs sporting milled tops. The 4-piston, twin radially-mounted callipers grip 320mm discs, while a single 265mm disc on the rear is gripped by a two piston calliper, also by Brembo. The Diavel Carbon uses specially milled aluminium disc carriers which have natural aluminium coloured recesses machined around the weight saving cut-outs in contrast to the carrier�s black finish around the centre. Typical of Ducati, these top-of-the-range components provide outstanding levels of braking and set a new benchmark in this category.
Diavel frame assembly
The signature Ducati Trellis frame uses large diameter, light gauge tubing with two lateral die-cast aluminium sections that flow into the rear subframe. This achieves massive torsional rigidity while remaining lightweight and compact. The two sections form a rear-end structure by attaching onto either side of a complex techno-polymer component.
Twin-level seat
The Diavel�s twin-level seat is wide, comfortable and beautifully shaped to fit the flowing lines of the machine and at 770mm (30.3in), has one of the lowest seat heights in the Ducati range. That low seating position, in addition to a low slung chassis set-up that weighs in at just 210kg (463lb) - 207kg (456lb) for the Diavel Carbon - enables the rider to get both feet on the ground for a sure-footed and confident stance. The seat also comes with a beautifully shaped and easily removable single seat cover, which is formed in carbon fibre on the Diavel Carbon.
Sachs rear suspension
The Diavel have a Sachs rear suspension unit slung low under the chassis in a horizontal position, operated by a progressive pull-rod linkage from the swingarm. Adjustable in compression and rebound damping, the unit uses a handy control for easy spring pre-load adjustment.
Equipment
Ducati Traction Control (DTC)
The racing-derived Ducati Traction Control (DTC) is a highly intelligent system which acts as a filter between the rider�s right hand and the rear tyre. Within milliseconds, DTC is able to detect and control rear wheel-spin, considerably increasing the bike�s active safety and performance. The system offers eight levels of �sensitivity�, each programmed with an amount of rear wheel-spin tolerance. These levels are in line with progressive levels of riding skills classified from one to eight. Level one is programmed to offer the least amount of interaction for sport-oriented riders, while level eight uses the most amount of interaction for complete confidence. DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the new user-friendly set-up menu. A �default�option is available to easily return all settings to factory pre-sets.
ABS
The Diavel is equipped with the latest, most compact, Ducati Bosch-Brembo ABS system as original equipment, providing a major contribution towards performance control. Top Brembo components combined with Bosch ABS, the special Diavel chassis configuration and Pirelli�s Enhanced Patch Technology (EPT) result in a braking performance even greater than that of the awesome Ducati Superbikes.
Split-level instrumentation
The upper LCD display is mounted on the bar-riser and provides main information such as speed and rpm, in addition to warning lights, time and temperature. The lower, full colour Thin Film Transistor (TFT) display is styled into the fuel tank and provides an incredibly clear account of current Riding Mode, gear selection and DTC setting as well as total mileage and trips. Used on mobile phones and computers, TFT technology is a variant of LCD and displays easy-to-read high resolution graphics. The Diavel�s TFT display goes one step further by using the sensitivity of its surrounding light to decide upon black or white background colour. When stationary, the lower display also doubles as the latest user-friendly control panel to personalise DTC and RbW settings within each Riding Mode before saving.
Lighting
The Diavel uses two clear vertical strips of LED lighting to provide tail and brake light illumination as well as directional indicators. The strips follow the precise line of the under-seat panelling, providing great visibility of the rear-end while keeping the external lines of the bike clean. The front directional indicators are clear lens LED strips mounted vertically down the leading edge of the lateral radiator covers. The headlamp gives the Diavel immediate Ducati identity and is supported by an aluminium outer body. The light uses high and low beam double reflectors to illuminate the road ahead, in addition to incorporating a horizontal strip of LED positioning lights for optimum visibility.
Pirelli tyres
Ducati�s technical partner, Pirelli, worked with the Diavel�s designers and engineers to develop the incredible new Diablo Rosso II tyres. While the front uses a conventional 120/70x17 section with a new tread pattern designed for enhanced wet weather performance, the 240/45x17 rear represents the latest innovation in tyre design with a sport-oriented profile being applied to custom-style width. The massive rear employs bi-compound technology to enable high grip levels at full lean angle while providing high mileage and uses Enhanced Patch Technology (EPT) to maximise the contact patch at all angles. The tread pattern and compounds deliver great performance in all conditions, especially the wet.
Hands-free ignition
The Diavel�s ignition is actuated by an electronic key in the rider�s pocket, which communicates with the motorcycle when within a distance of approximately 2 metres (6.5ft). The motorcycle recognises the dedicated key code and automatically enables the bike�s systems. Pressing the key-on switch then activates all systems to �on� and the engine is ready to be started. The electronic key, which internally consists of a radio circuit, externally doubles as a mechanical flip-key, required to open the seat and fuel tank cap. When parking the motorcycle, an electronic lock can be actuated on the steering simply by applying full steering-lock and pressing the ignition-off button a second time.
Controls
The Diavel handlebar shape and arrangement leaves the rider feeling comfortable and in command. Wide, tapered section aluminium bars with new custom designed provide a clean and minimalist set-up, while stylish, forged-aluminium supported mirrors deliver a generous view to the rear. Switchgear control is taken care of by Ducati�s latest and most minimalist design with slim-line bodies housing easy-to-use switches and buttons and a unique weapons-like �trigger catch� that slides down to cover the starter button when activating the kill-switch. While the indicator cancel button doubles as a scroll-and-select for fast and easy Riding Mode changes, switches above and below serve to navigate the new high-resolution display control panel.
Footpegs and grab-rail
Passengers on the Diavel will appreciate the way the slender passenger footpegs ingeniously fold down from the rear sub-frame as well as the innovative, T-bar shaped grab-rail assembly, which slides out from the rear of the seat. Deployed from a mechanism under the seat, the grab-rail provides a comfortable and confidence-inspiring grip for the passenger, while the shape perfectly blends into the lines of the tail-piece when retracted. Both passenger-friendly features are crafted in forged aluminium and shot-peened for strength and uniform finish before being black anodised to become almost invisible when folded away.
Innovative number plate mount
Employing the double strip of multi-functional LEDs for the rear lighting of the Diavel required an innovative solution for the mounting of the number plate. The unique design uses mounts on the rear hub of the single-sided swingarm to extend an elegant and Ducati signature Trellis framework around the 240 section rear tyre, enabling a central mounting of the plate. The framework carries a hidden power feed to dedicated LED illumination for the number plate, eliminating any reliance on the main rear lights and creating a clean feature around the rear of the seat. This design solution represents the first of its kind and an example of the incredible attention to the Diavel�s detail.
Carbon fiber
Carbon fibre is used for the tank panels, single-seat cover and front mudguard to reduce weight and apply a race-like feature that runs deep in the DNA of Ducati.
2011 Ducati Diavel Carbon - United States of America Specifications
USA MSRP - $TBA USD
Engine
TYPE
Testastretta 11�, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
DISPLACEMENT
1198.4cc
BORE X STROKE
106 x 67.9mm
COMPRESSION RATIO
11,5:1
POWER
162hp (119kW) @ 9500rpm
TORQUE
94lb-ft (127.5Nm) @ 8000rpm
FUEL INJECTION
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
EXHAUST
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
PRIMARY DRIVE
Straight cut gears, ratio 1.84:1
FINAL DRIVE
Front sprocket 15; Rear sprocket 43
CLUTCH
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1590mm (62.6in)
RAKE
28�
FRONT SUSPENSION
Marzocchi DLC coated 50mm fully adjustable usd forks
FRONT WHEEL TRAVEL
120mm (4.7in)
FRONT WHEEL
Marchesini forged and machined 9-spoke 3.50 x 17
FRONT TYRE
120/70 ZR 17 Pirelli Diablo Rosso II
REAR SUSPENSION
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
120mm (4.7in)
REAR WHEEL
Marchesini forged and machined 9-spoke 8.00 x 17
REAR TYRE
240/45 ZR17 Pirelli Diablo Rosso II
FRONT BRAKE
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
REAR BRAKE
265mm disc, 2-piston floating calliper with ABS
FUEL TANK CAPACITY
17l - (5.3US gal)
DRY WEIGHT
207kg (456lb)
INSTRUMENTS
Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption, average speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)

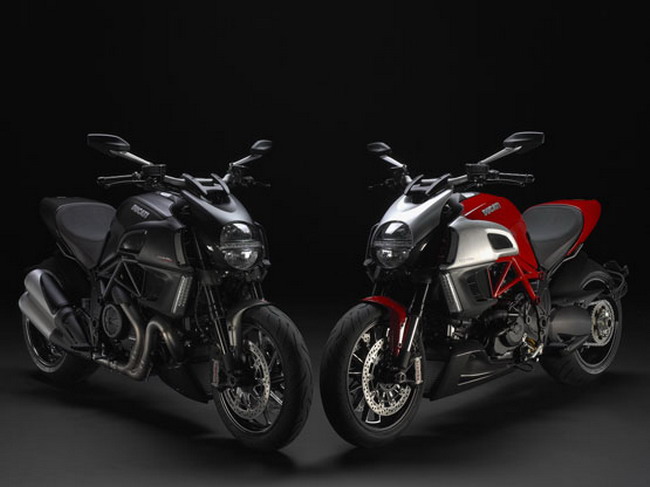

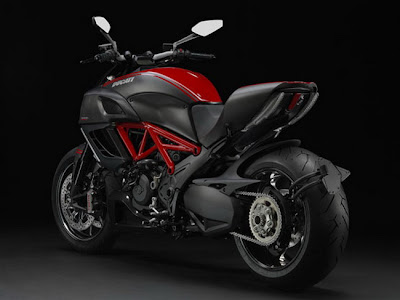

Red and Matt Carbon (red / black) - Glossy and Matt Carbon (racing black / black)
VERSIONS
Dual seat
SEAT HEIGHT
770mm (30.3in)
DDA
Not available on this model
DTC
Standard equipment
ABS
Standard equipment
Emissions
STANDARD
Euro 3
Ducati Press Release
Ducati to unveil the innovative new Diavel Carbon at the Milan showAfter months of speculation the long wait is almost over, the new Diavel Carbon will make its first public appearance at the EICMA International Motorcycle Show in Milan this coming November, 2-7.
Announcing the new model�s name ahead of the official presentation, the famous Italian manufacturer is about to turn another dream into reality. This dream comes true via using the local Bolognese dialect for �devil� in naming their new model the Diavel Carbon � pronounced Dee-ah-vel.
The idea for the Diavel Carbon name was born early in the development process of the bike, when the prototype was assembled and wheeled out in front of a group of Ducati engineers and technicians for the first time. One person looking from the rear of the bike saw its silhouette and exclaimed in Bolognese dialect: �Ignur�nt comm� al Diavel Carbon!� Meaning: �Evil, like the devil!�
From that moment on, Diavel Carbon became the nickname for the project. Ducati now makes the name official as it approaches the unveiling in Milan. Reminiscent of how the �Monster� was named 20 years ago, the Diavel Carbon is now destined to follow the same Bolognese tradition. Ducati is proud to continue shaping the future of motorcycling while staying faithful to its Italian heritage.
Built to have a commanding presence, though lightweight and agile, the Diavel Carbon will take the man-motorcycle relationship to the next level in absolute comfort. For fans of technology ABS, Ducati Traction Control and Ducati Riding Modes will deliver a confidence-inspiring sophistication. Stunning looks, the Superbike-derived Testastretta 11� engine and 456lb of authentic Ducati performance will drive a comfortable sport lifestyle that could only be dreamt of until now.
The Diavel Carbon is on its way...
